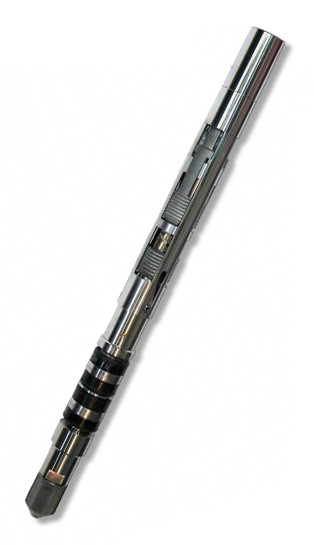

RETRIEVABLE BRIDGE PLUG
Patented release mechanism and patent pending slip-lock design Equalizing assembly options: Prong equalizing type, Kobes knockout type (with sand control system) or pump open sub All QUPs are built to NACE MR0175 specifications Proprietary HSN (Highly Saturated Nitrile) elements for sour-service or high temperature (400°F/200°C) Fluoroelastomer elements Proprietary TRIPLEX™ elastomer design seals against even highly corroded tubing walls Maximized thru bore for maximum production in straddle systems and gauge hanger applications In severe conditions, the bottom sub mounted elements can be easily removed by light jarring
The QUP retrievable bridge plug is a high quality selective plug designed to provide pressure control or tubing anchoring in monobore completions and completions where existing production nipples are damaged. The QUP retrievable bridge plug can be set with a variety of setting tools, E-line or coiled tubing. Retrieving the plug is done using standard GS pulling tools. The plug is available with several bottom subs (e.g. equalizing sub, pump through, hanger or choke).
APPLICATIONS
- QUP PLUG
- QUP STRADDLE
- QUP HANGER
- QUP AR-LIFT
- QUP CHOKE
-
Patented release mechanism and patent pending slip-lock design
-
Equalizing assembly options: Prong equalizing type, Kobes knockout type (with sand control system) or pump open sub
-
All QUPs are built to NACE MR0175 specifications
-
Proprietary HSN (Highly Saturated Nitrile) elements for sour-service or high temperature (400°F/200°C) Fluoroelastomer elements
-
Proprietary TRIPLEX™ elastomer design seals against even highly corroded tubing walls
-
Maximized thru bore for maximum production in straddle systems and gauge hanger applications
-
In severe conditions, the bottom sub mounted elements can be easily removed by light jarring
